Day 1 - The saw comes home

I picked up this saw today from a very nice family. They agreed to let me have the saw free of charge in return for documenting its restoration. Since I have always meant to do a step by step (and never had). It suited me perfectly.

It is a 1959 AMF DeWalt model 925. Dual voltage (120/240 volts) frame 235 motor (10/5 amps). This saw included a drop leaf table (original) and also features an electro-mechanical braking system.

Step 1 - Photograph the saw

Despite the surface rust the initial inspection checked out fine. "What?" you're saying. "That thing is a wreck!" Maybe, maybe not. Back in Ye Olden post WWII days when things were designed and built by craftsmen it was a whole different ball game. These saws were so well designed and built that they could stand up to years of abuse or casual neglect and still be restored to "better than new" condition with a little effort. Simply put, they don't make them like this any more for any price. I invite you to travel along with me as I attempt to demonstrate the process. Let me warn you, though, this can become very addictive! Onward!
  • One owner
  • There were no signs of abuse.
  • The ways were in great shape
  • The arbor threads were in perfect condition
  • Almost all the knobs were intact.
  • The blade spins very freely and quietly
As it is I think I will go with stainless steel replacement knobs.

Step 2 - Spray frozen metal pieces with PB Blaster

Step 3 - Remove blade

Step 4 - Steel wool the ways. They are in great shape, No burrs or pitting at all.

Step 5 - Remove plastic knobs from locking pins and screw a 1/4-20 nut all the way onto the threads of the pins to free them with a wrench. Again, Perfecto! They freed right up.

Step 6 - Attempt to elevate the arm. It was stiff but will go up and down smoothly.

Step 7 - Open the motor up and confirm it is wired for 240 volts

Ouch! Look at that moisture! It is wired for 240 volts, though. How do I know? Take a look...

Here is the motor badge with two wiring diagrams:

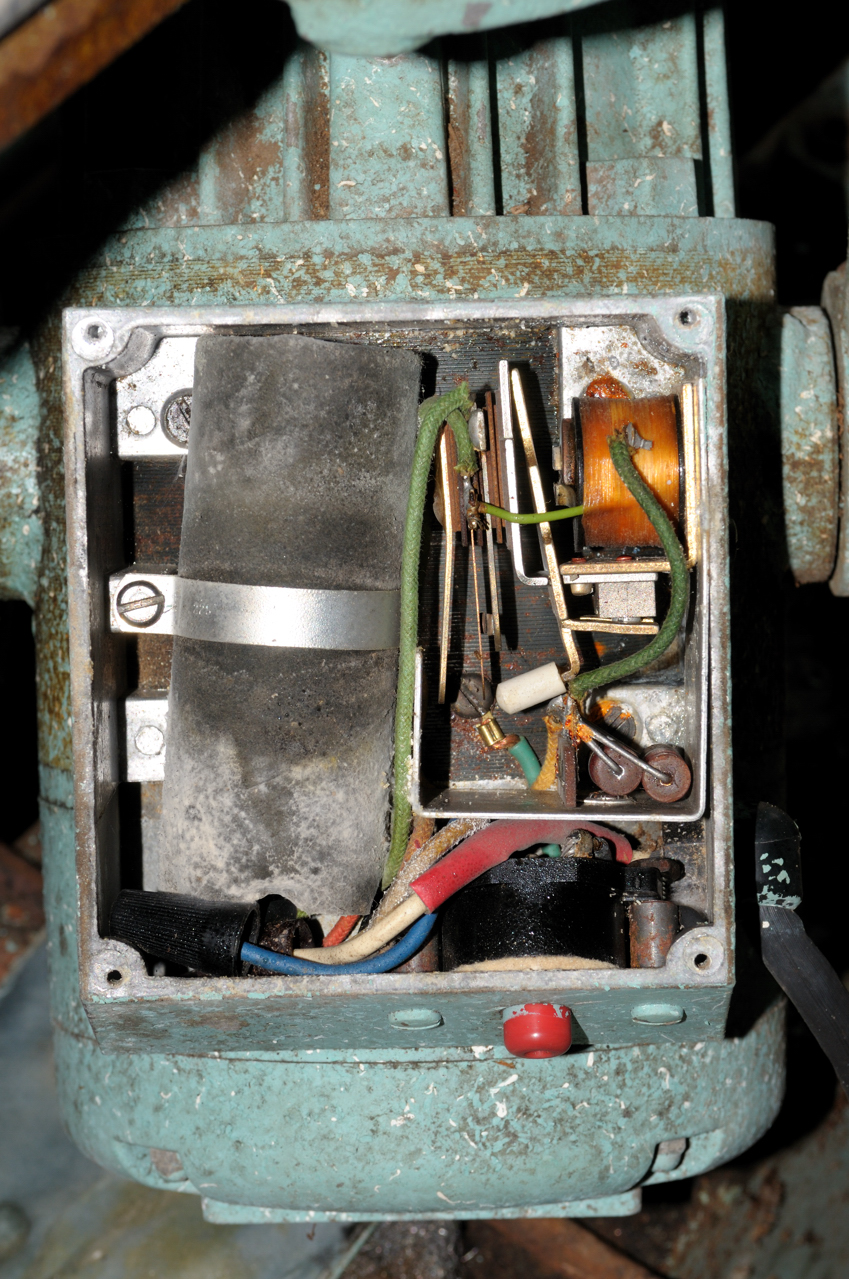

Here is the motor:

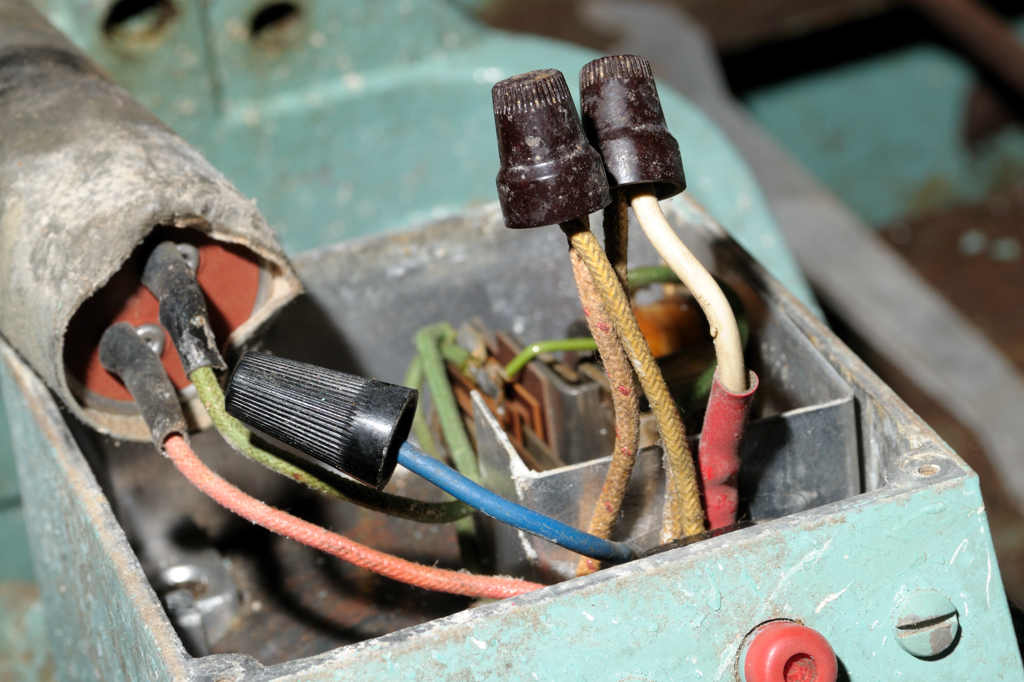

Note that the white "line" is connected to only one other wire.
Note that the "red" and "yellow" wires are connected.
Note that the blue wire in insulated from everything else.

This matches the diagram for 240 volt wiring in the first image.

The colors of the wire insulation fade over time so this usually a process of elimination. It is good practice to re-label the wires once you identify them.

The swollen capacitor is a little scary but I'm still going to plug it in and see what happens.

It runs! FYI, my garage shares a wall with a small laundry room. I created a 10 gauge extension cable that plugs in to the dryer outlet in the laundry room and powers my 240v motors in the garage. This will have to do until I can afford a new panel in the garage. I have 236 volts to work with according to my volt meter.

It is very noisy, though. Although it sounds like a crippled bearing my fear is that the noise is from the mechanical brake and not the bearings. I'll have to open it up and take a look.

What is "noisy"? A motor like this with no blade attached should basically hum when powered. Make the sound "hmmmmmmmmm" in a speaking tone of voice. That should be louder than the motor. It should not rattle or vibrate excessively. It should not heat up appreciably either. I'll talk more about this when we open the motor up and replace the bearings.

The capacitor is a 216-245 MFD 125V model. I will replace it with a modern Dayton 2MDR7 which is 216-259 MFD for $5.46:

That's all for today. Click here to read about RAS "ways".
